Part Number
|
PS-125-2-WT-S
|
|
Adhesive
|
None
|
|
Agency Approval(s)/Compliance
|
SAE-DTL-23053/5 Class 1, SAE-AS-81531, MIL-STD-202, UL Recognized
|
|
Application
|
Wire & Cable Marking, Panel Identification
|
|
Brady Material Number
|
B-342
|
|
Color
|
White
|
|
Description
|

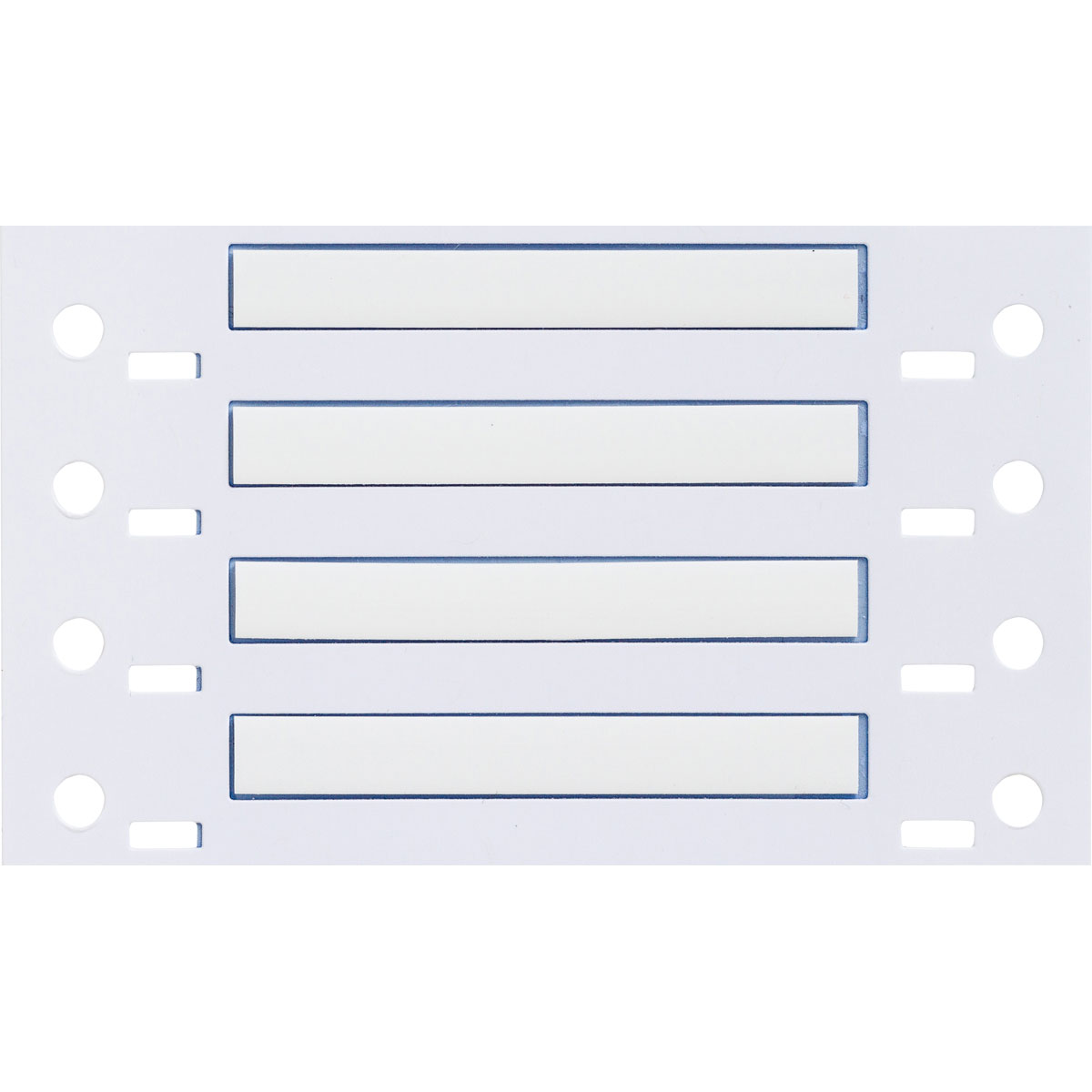

PermaSleeve® Wire Marking Sleeves
|
|
Finish
|
Matte
|
|
General ID Catalog
|
pg. 168
|
|

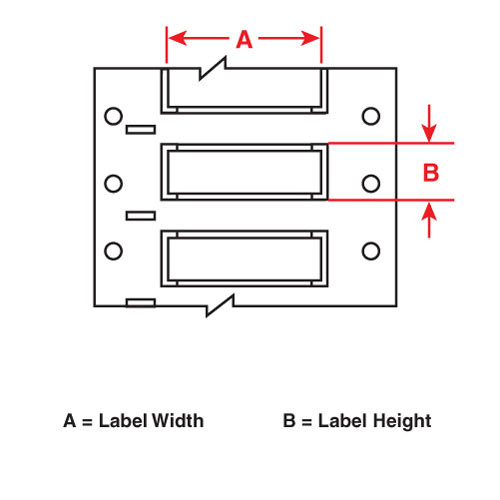

Height (in)
|
0.235"
|
|
Height (mm)
|
6.000 mm
|
|
Label Type/Style
|
Sleeve
|
|
Long Description
|
Brady's PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve & Datab® Printers, as well as Thermal Transfer printers.
|
|
Material Description
|
PermaSleeve® Heat-Shrink Polyolefin
|
|
Material Type
|
Polyolefin
|
|
Panel Application
|
Wire & Cable Marking
|
|
Printable Sides
|
One-Sided Printable
|
|
Printer Compatibility
|
Brady 1244, Brady 1344, Brady 2461, Brady 3481, Brady 6441, Brady 300X-Plus II, Brady 360X-Plus II, Brady 600X-Plus II, Tagus T200, Tagus T300, Thermal Transfer Printers, Sleeve & Datab Series, IP300, IP600, BradyPrinter PR Plus
|
|
Product Number
|
32143
|
|
QTY/UOM
|
500/Package
|
|
Range of Wire Diameter (in)
|
0.046" - 0.110"
|
|
Range of Wire Diameter (mm)
|
1.17 mm - 2.79 mm
|
|
Recommended Ribbon Series
|
The Brady R6600 Series and R4300 Series black ribbons are recommended for best thermal transfer print performance. The Brady R4502S silver ribbon and the R6700 Series white ribbons are recommended for thermal transfer printing of black markers. The Brady R5000 Series high performance ribbon is recommended for best dot matrix print performance.
|
|
Shrink Ratio
|
3-to-1
|
|
UPC Code
|
66282032143
|
|
Vertical Repeat
|
0.500" (12.70 mm)
|
|
Width (in)
|
2.000"
|
|
Width (mm)
|
50.800 mm
|
|
Wire Gauge
|
22 to 16
|
